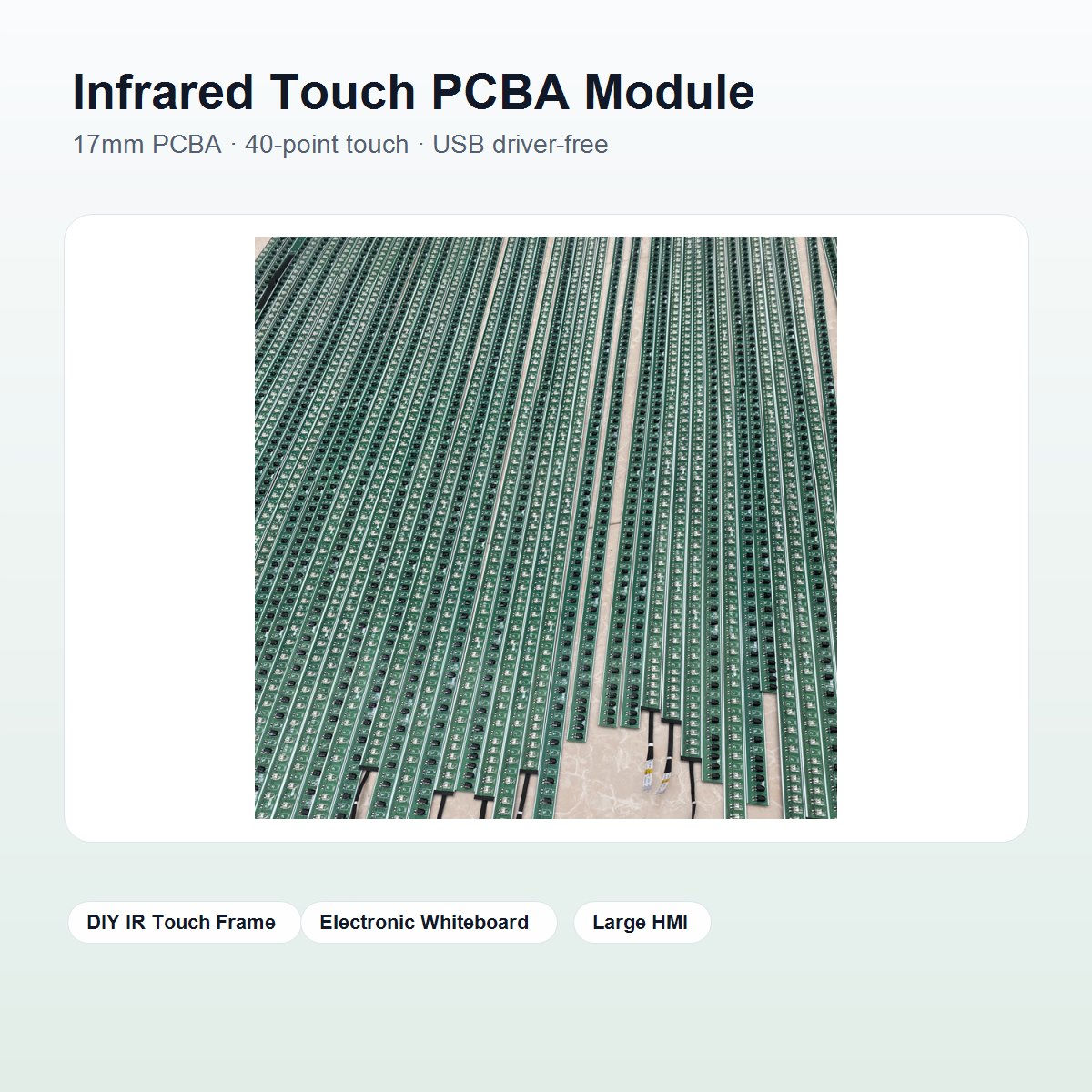

Infrared Touch PCBA Module
Infrared touch PCBA module for DIY IR touch frames, electronic whiteboards, and large-format human-machine interfaces. Custom order only. Please contact Haitouch for pricing and configuration.
- 17mm PCBA width
- Up to 40-point touch
- USB driver-free interface
- Windows, Linux, Android, and macOS support
- Custom lengths and module sets available
Description
Infrared Touch PCBA Module

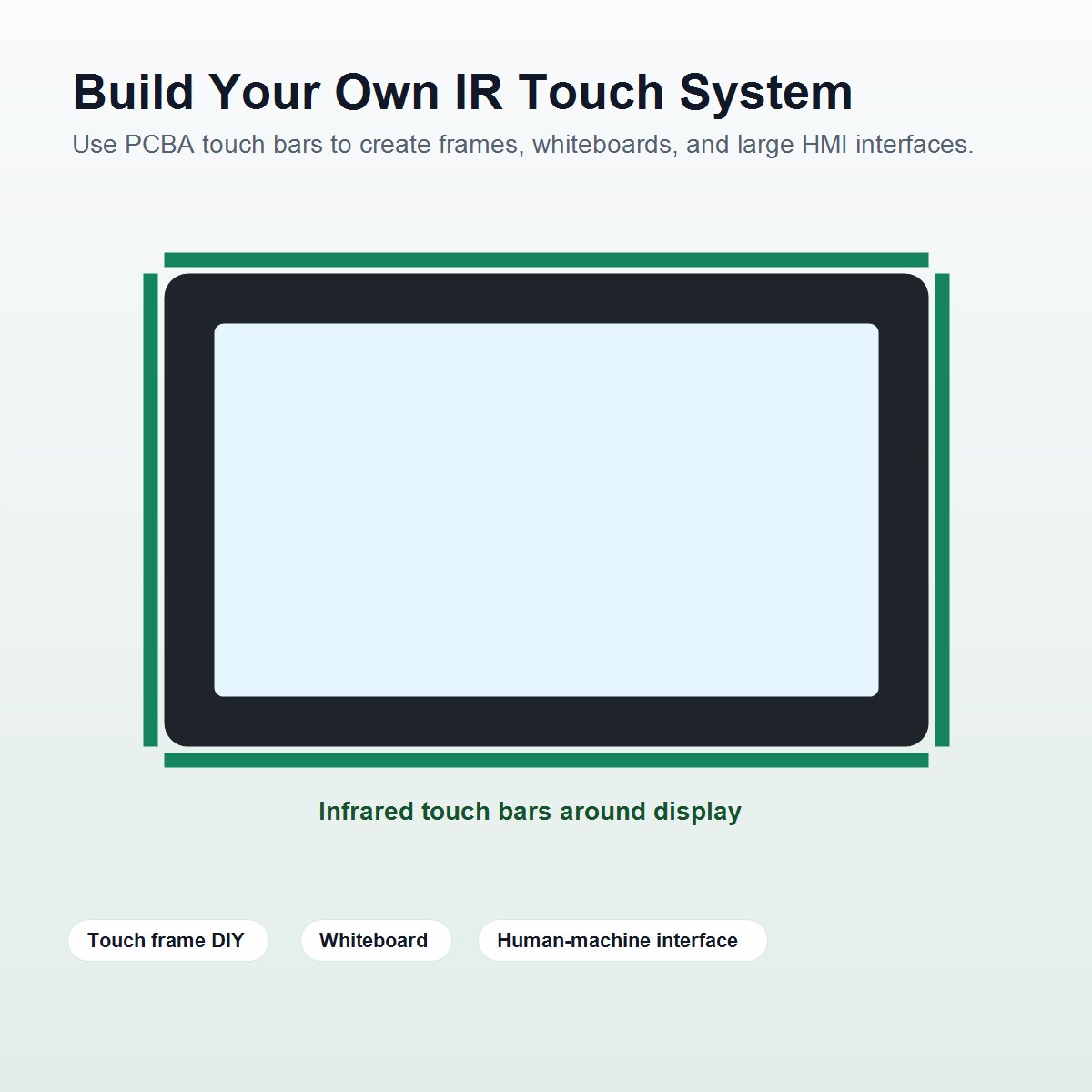

Build custom infrared touch frames from PCBA touch bars.
Haitouch infrared touch bars are designed for OEM teams, makers, and integrators building custom IR touch frames, electronic whiteboards, and large human-machine interaction surfaces.
40-point touch
High-density infrared sensing for custom touch systems.

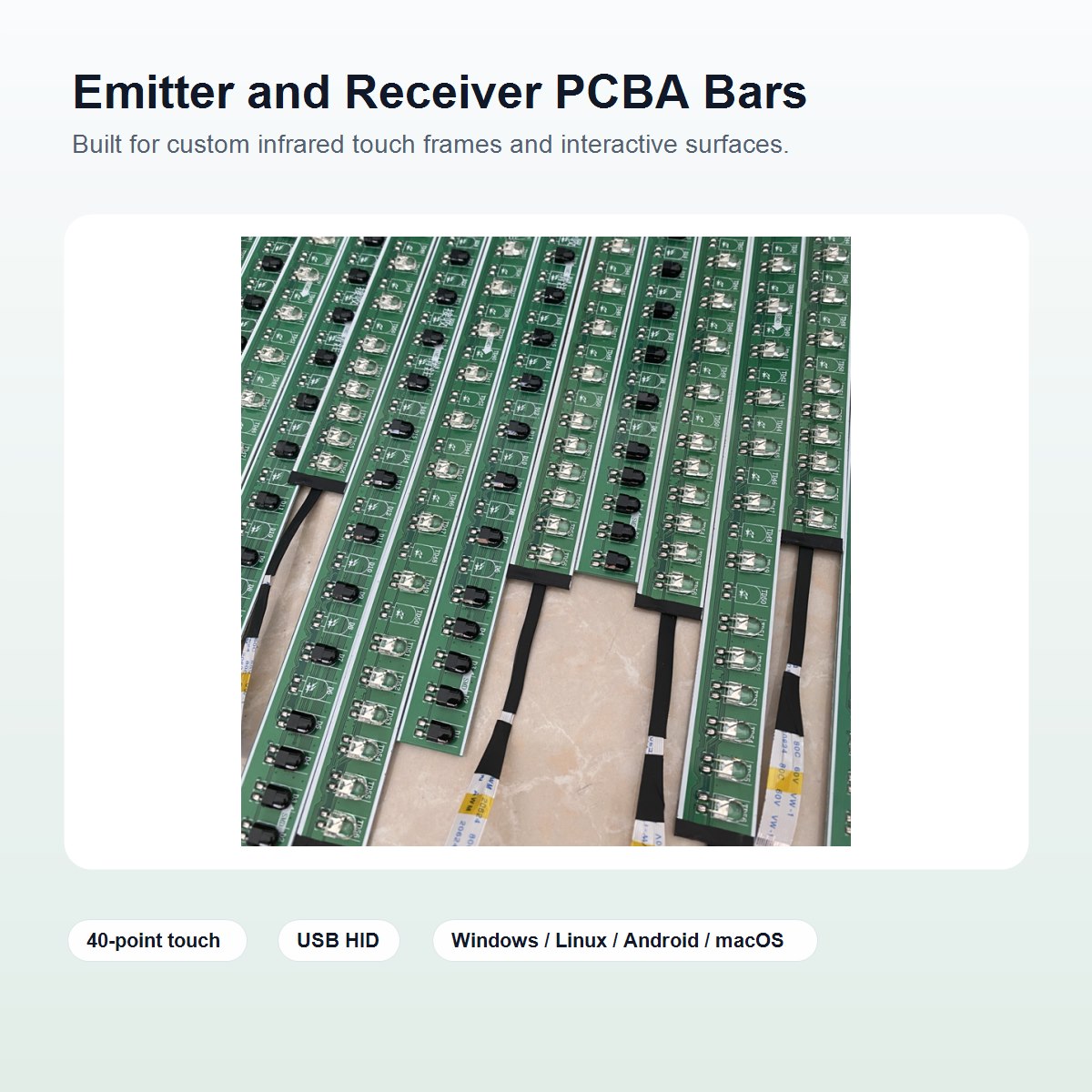

The emitter and receiver PCBA bars can be configured into custom-size infrared touch frames for interactive displays and large-format surfaces.
- Up to 40-point touch
- 17mm PCBA width
- Custom length and module set configuration
USB driver-free
Simple integration with major operating systems.
Use USB HID touch input for driver-free operation on common commercial and embedded platforms.
- USB plug and play
- Windows, Linux, Android, and macOS support
- Suitable for custom IR frame controller integration
Custom order

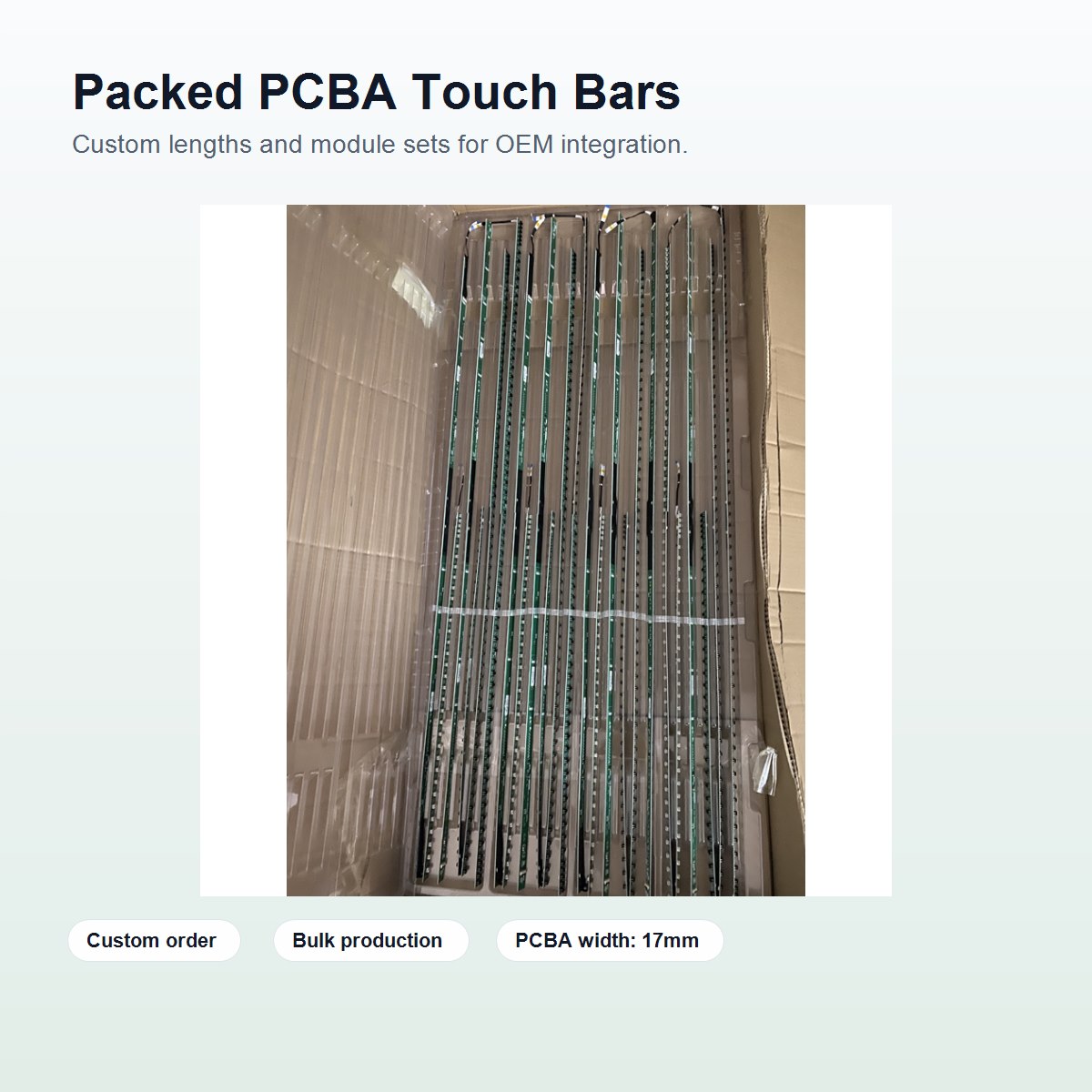

Supplied as PCBA bars or complete module sets.
This is a custom component product. Pricing depends on length, quantity, touch size, controller configuration, cable requirements, and production schedule.
- Custom size support
- Bulk production available
- Contact Haitouch before ordering
Specifications
Core technical parameters.
Final configuration depends on frame size, PCBA length, controller, and project requirements.
| Product names | Infrared touch bar, infrared touch module, infrared touch PCBA |
|---|---|
| PCBA width | 17mm |
| Touch points | Up to 40-point touch |
| Interface | USB HID, driver-free |
| Supported systems | Windows, Linux, Android, macOS |
| Typical use | DIY infrared touch frame, infrared electronic whiteboard, large-size HMI interface |
| Order type | Custom order, price on request |
| Customization | PCBA length, module set, cable position, controller matching, OEM production |
Inquiry Form
Request a custom PCBA quote.
Use the Haitouch inquiry form to send your touch size, quantity, and project requirements.
Custom component order
Tell us your touch size and frame design.
Send your required active area, target display size, quantity, and operating system. We will confirm the PCBA module set and quote.
