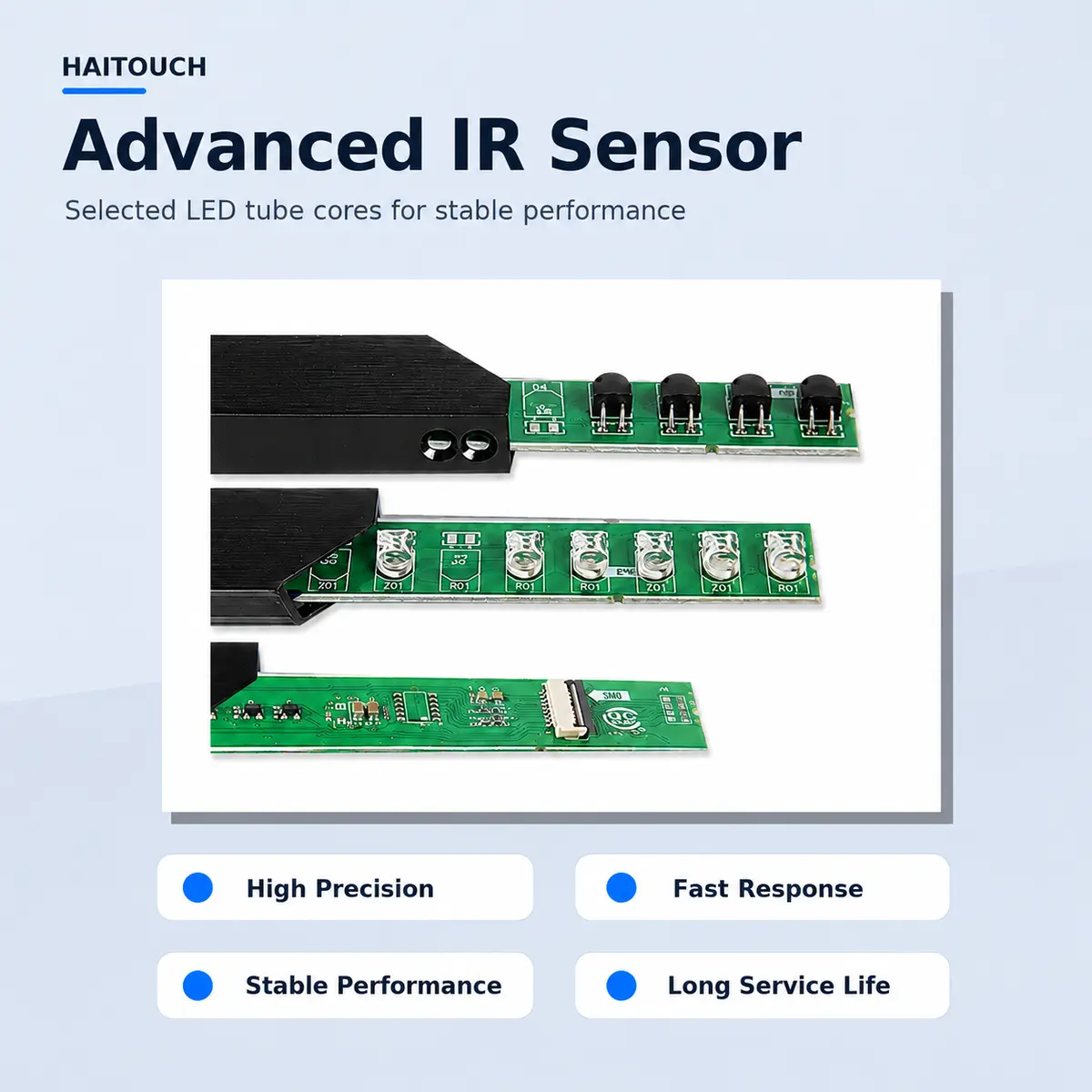

IR Touch Frame - Image 5
IR Touch Frame - Image 6
IR Touch Frame - Image 7

IR Touch Frame

Price range: $60.00 through $260.00

Modular infrared touch frame for converting LCD, LED, and glass displays into responsive multi-touch screens. Supports 20-point touch, USB plug-and-play setup, broad OS compatibility, and custom sizing for OEM projects.

  • 20-point infrared multi-touch
  • USB plug and play
  • Windows, Android, Linux, and macOS compatible
  • Standard sizes from 23 to 100 inches, custom sizes available
SKU: lv Category:

Description

IR Touch Frame

Turn commercial displays into precise multi-touch systems.

Haitouch IR Touch Frame is a modular infrared touch overlay for digital signage, classrooms, kiosks, conference rooms, industrial panels, and OEM display projects.

20-point touch

Responsive multi-touch for large-format interaction.

The infrared sensing grid detects fingers, gloves, and passive stylus input with smooth multi-user response. It is built for interactive displays where reliability matters more than visual clutter.

  • Up to 20 simultaneous touch points
  • Fast response for writing, gestures, and collaboration
  • Works through protective glass in suitable installations

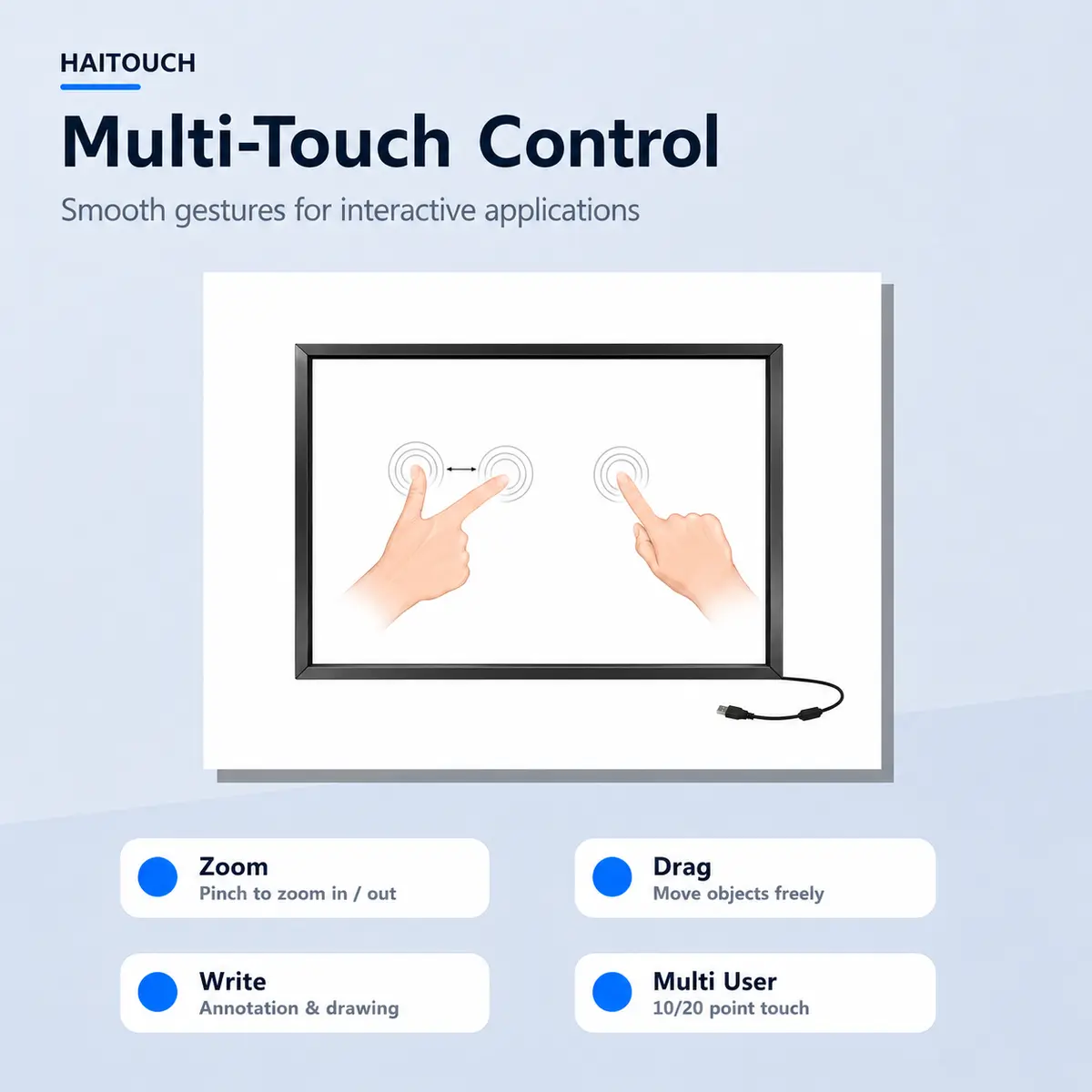

IR touch frame multi-touch control

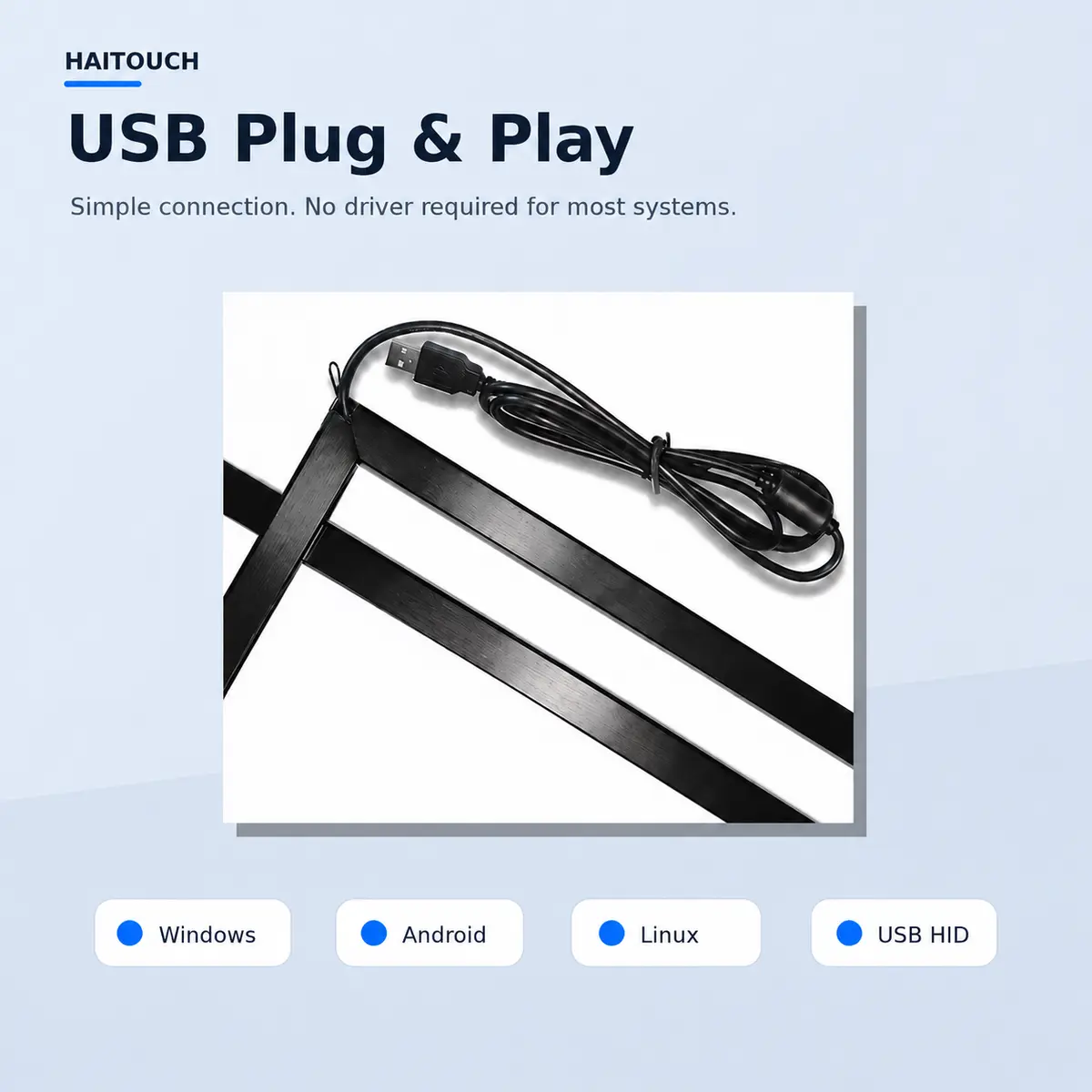

USB plug and play interface for IR touch frame

USB plug and play

Simple integration for new builds and display upgrades.

Connect the frame by USB and pair it with your existing LCD or LED display. The modular structure makes it suitable for retrofit projects, custom housings, and embedded OEM products.

  • USB HID touch interface
  • No special controller software required for most systems
  • Compatible with Windows, Android, Linux, and macOS environments

Standard and custom sizes

From 23 inches to 100 inches, with custom sizing available.

Choose standard sizes for faster delivery, or request custom dimensions for OEM projects, special glass, enclosure constraints, and unusual display formats.

  • Standard sizes from 23″, 24″, 27″, 32″ through 100″
  • Custom frame dimensions available on request
  • Designed for commercial display integration

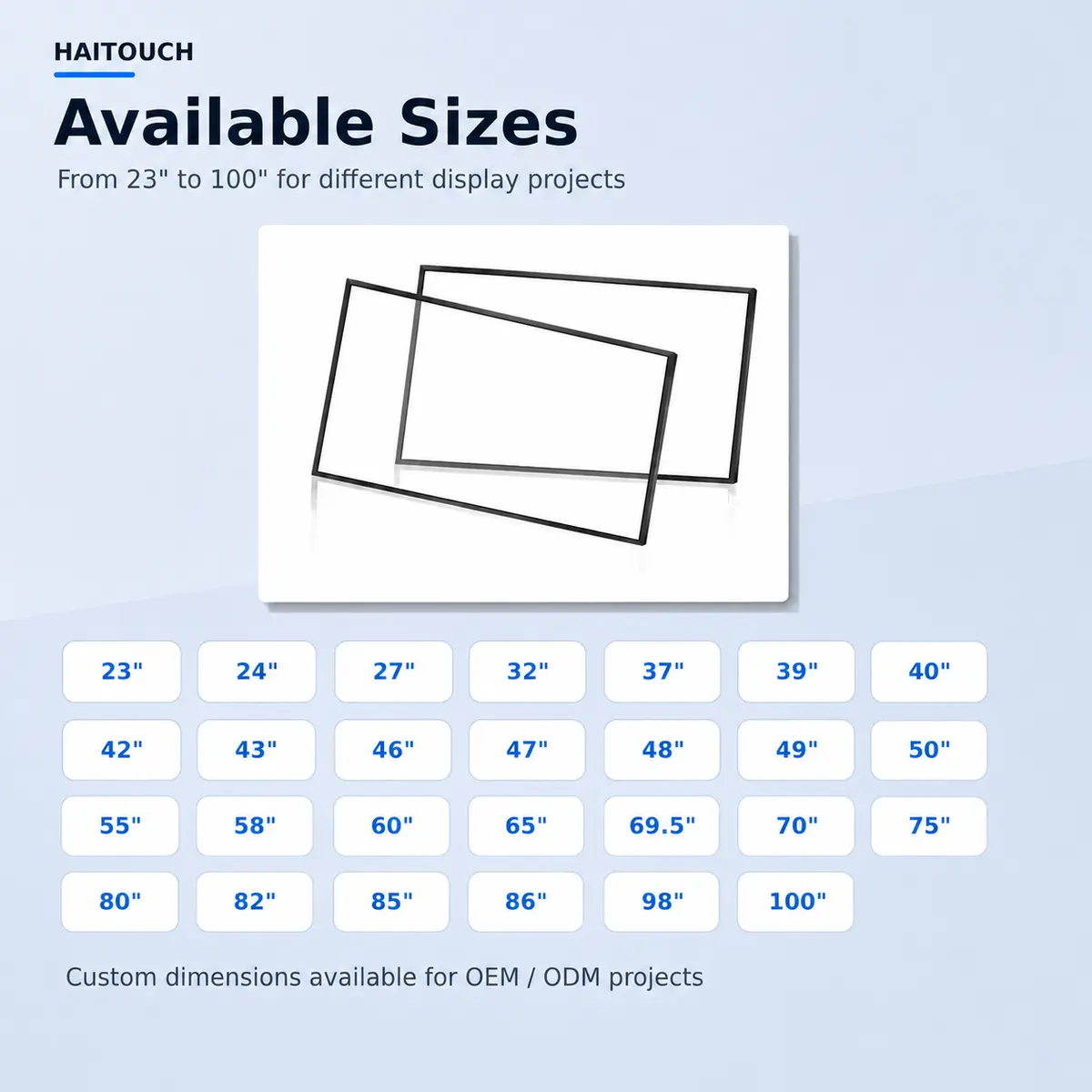

IR touch frame standard and custom size range

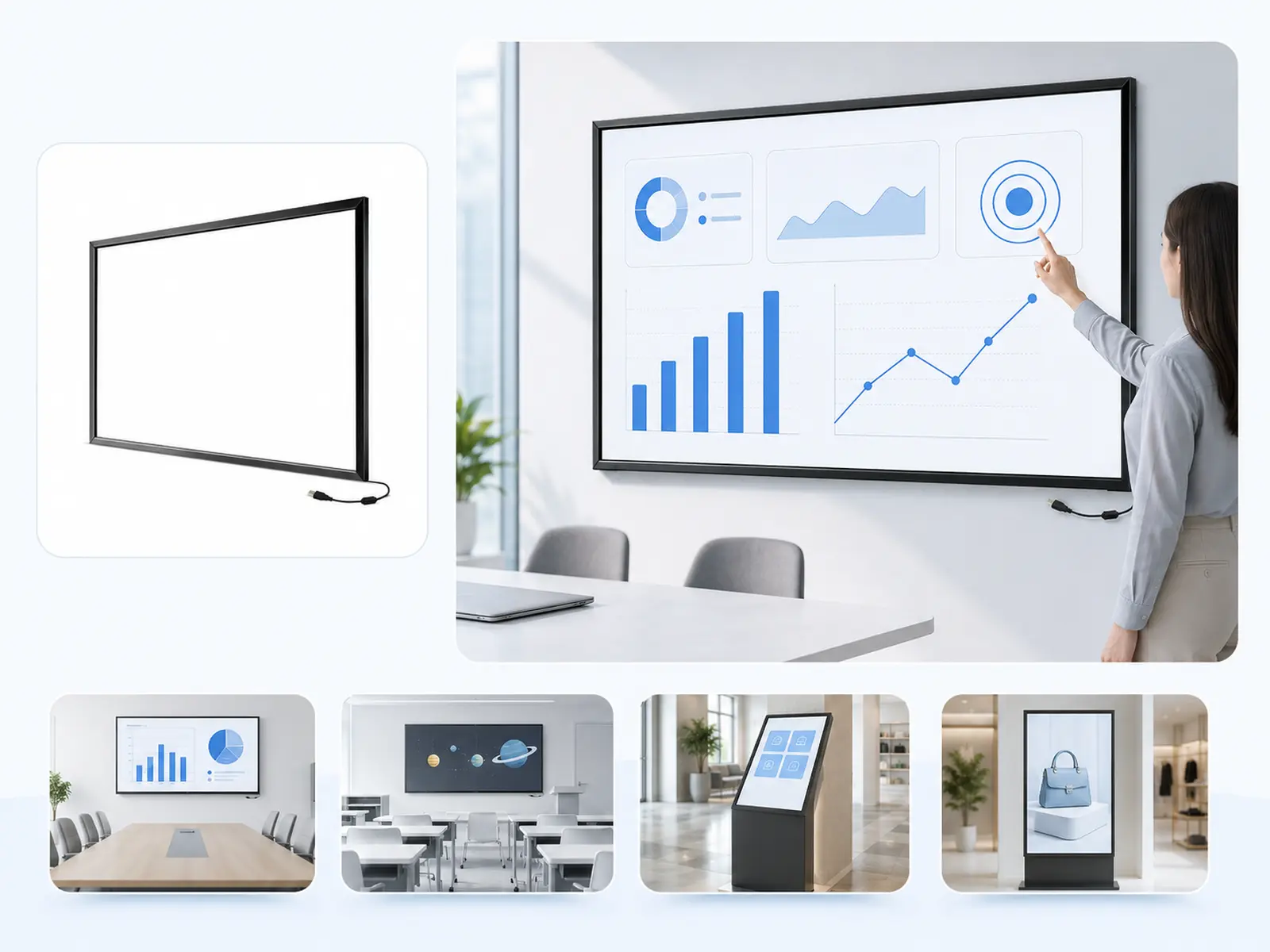

IR touch frame used in an interactive classroom display

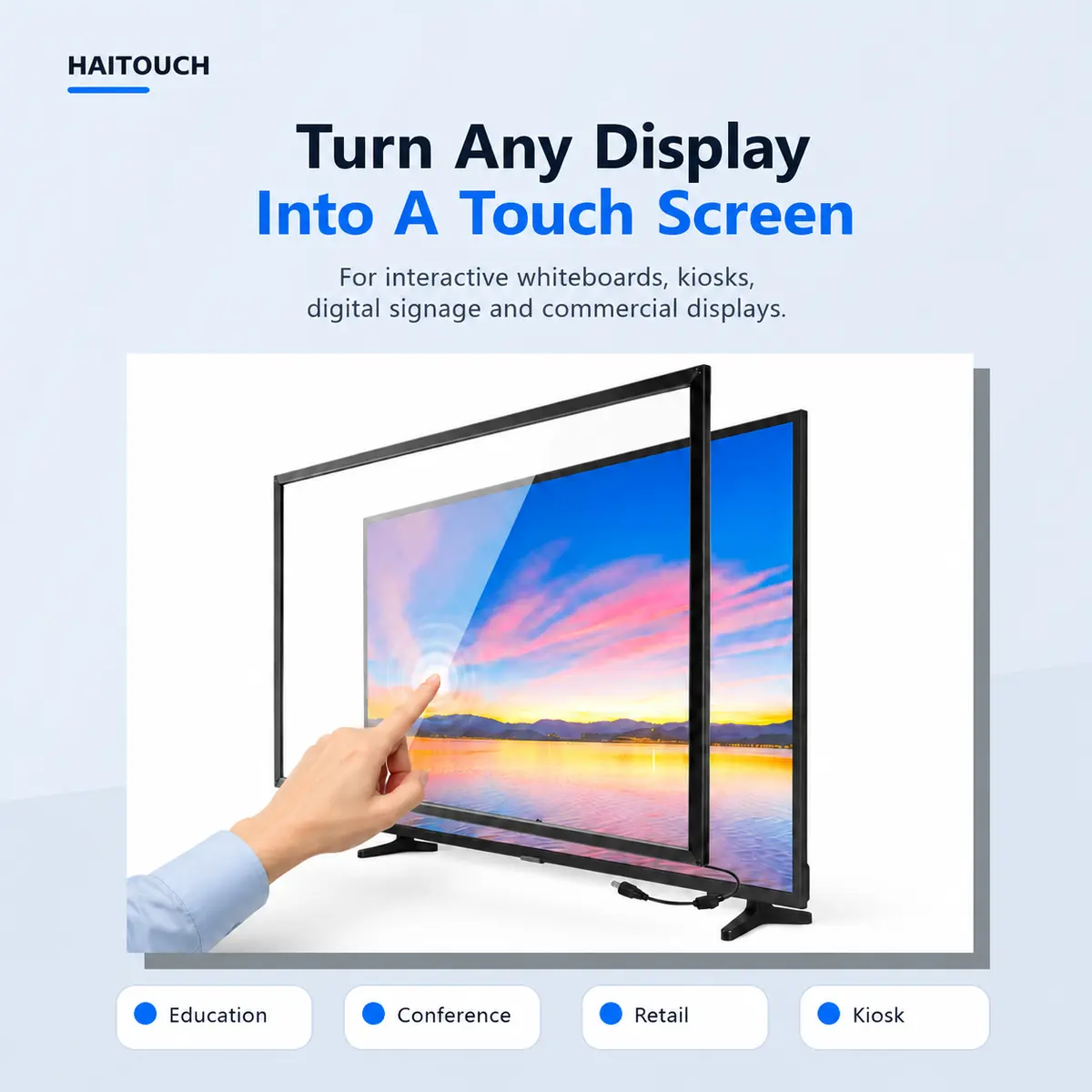

IR touch frame converting a display into a touch screen

Application ready

Built for education, retail, meeting rooms, and industrial control.

The frame converts a display surface into a touch-enabled workspace without changing the display panel itself. It is a practical path for interactive signage and professional touch systems.

Education

Interactive teaching screens, lecture rooms, and training spaces.

Commercial

Retail kiosks, digital signage, wayfinding, and self-service systems.

OEM Projects

Embedded displays, custom enclosures, and branded touch products.

Specifications

Core technical parameters.

Final configuration can vary by size and project requirement. Contact Haitouch before bulk or OEM orders for confirmation.

Touch technology Infrared optical touch frame
Touch points Up to 20-point multi-touch
Interface USB HID, plug and play
Supported systems Windows, Android, Linux, macOS, and compatible embedded systems
Input methods Finger, gloved hand, and passive stylus support depending on installation
Available sizes 23″, 24″, 27″, 32″, 37″, 39″, 40″, 42″, 43″, 46″, 47″, 48″, 49″, 50″, 55″, 58″, 60″, 65″, 69.5″, 70″, 75″, 80″, 82″, 85″, 86″, 98″, 100″
Customization Custom frame size, cover glass integration, cable position, and OEM structure available
Typical use Interactive display, kiosk, classroom screen, meeting display, digital signage, industrial panel

FAQ

IR Touch Frame FAQ

Common questions about infrared touch frame sizing, installation, compatibility, and customization.

What is an IR touch frame used for?
An IR touch frame is used to convert an existing LCD, LED, or commercial display into an interactive touch screen. It is commonly used for classrooms, meeting rooms, kiosks, digital signage, industrial control panels, and OEM touch display projects.
Can I order a custom size?
Yes. Haitouch supports standard sizes from 23 inch to 100 inch, and custom frame dimensions can be quoted for special display sizes, glass structures, enclosure limits, cable positions, and OEM integration requirements.
Does the IR touch frame need a driver?
For most Windows, Android, Linux, and macOS systems, the USB HID touch interface is plug and play. Final compatibility can depend on the operating system version, touch protocol, and host device, so project confirmation is recommended before bulk orders.
What input methods does it support?
Infrared touch frames can detect finger touch, gloved hand input, and passive stylus input depending on the installation structure and touch surface. This makes IR technology practical for large-format public, education, and industrial applications.
Can it work with protective glass?
Yes, IR touch frames can be used with suitable protective glass or cover structures when the frame, glass thickness, bezel design, and installation gap are properly planned. For custom glass or outdoor-facing projects, send drawings or photos before ordering.
How do I choose the right frame size?
Measure the active display area, outer display dimensions, bezel space, and installation structure. For the fastest confirmation, send the display model, size, photos, and target quantity through the inquiry form.

Need a project fit check?

Tell us your display size and installation plan.

We can help confirm frame size, USB touch compatibility, glass requirements, and OEM customization before you order.

Contact Haitouch supportOEM custom solutions

Additional information

Weight N/A
Dimensions N/A
Size

23 inch, 24 inch, 27 inch, 32 inch, 37 inch, 39 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 55 inch, 58 inch, 60 inch, 65 inch, 69.5 inch, 70 inch, 75 inch, 80 inch, 82 inch, 85 inch, 86 inch, 98 inch, 100 inch
